Product Description

O General
CONCEALED DUCTED Type
NEWTROPICAL SPECR32INVERTERCooling

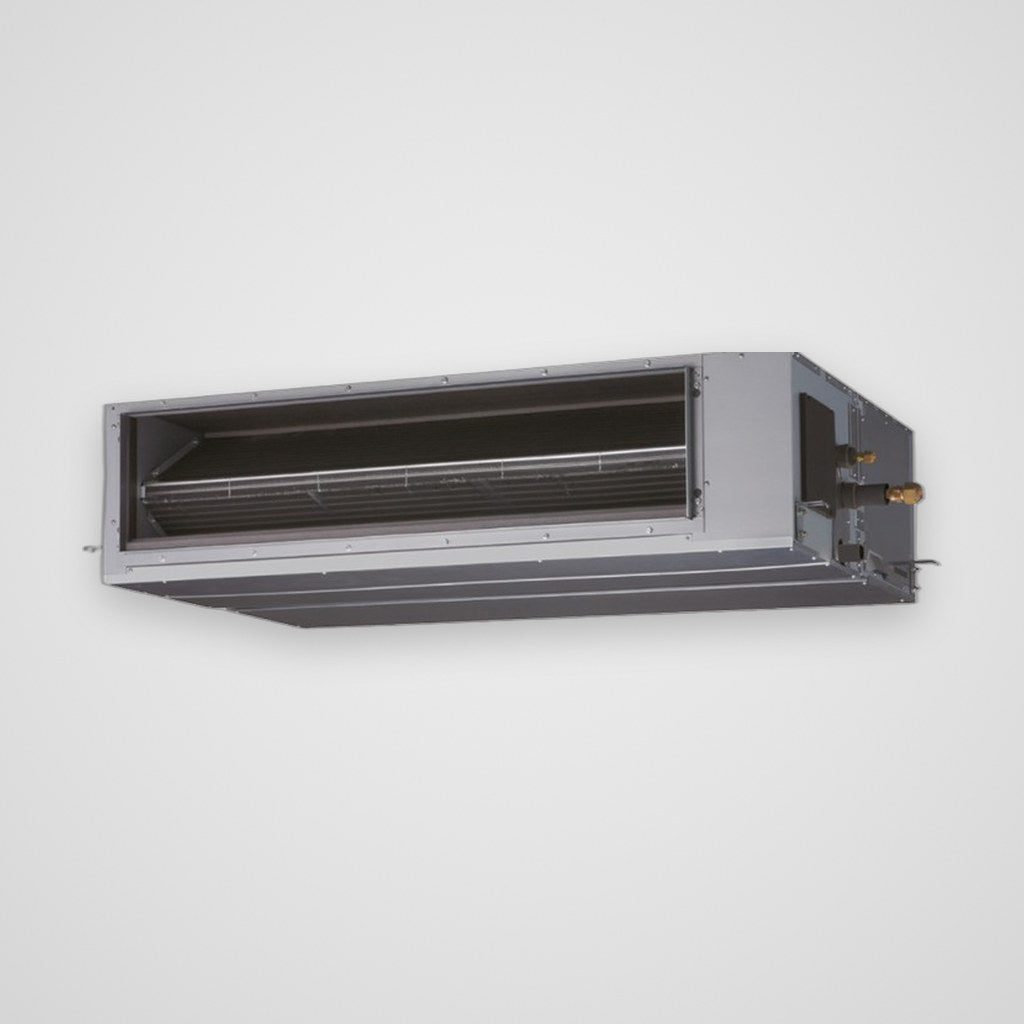

O General ARSG Inverter Concealed Ducted Split AC 5 Ton

Set ARSG60CMTAZ  ·  Indoor ARSG60CMTA  ·  Outdoor AOSG60CRTA

57,000 BTU Cooling  |  Cool Only  |  3-Phase 400 V / 60 Hz

FEATURES

INVERTERInverter Technology

Inverter-driven compressor adjusts output to the load, holding a steady temperature while cutting energy use.

DESERT SPECDesigned for Desert Climate

High-ambient-temperature compatible electric components with silicon coating on all PCB circuits for anti-corrosion.

WIDE RANGECooling up to 55°C

Built to keep cooling at outdoor temperatures of up to 55°C — made for the Saudi summer.

HEAT REJECTIONNew Cooling Piping System

A new "cooling piping system" in the outdoor unit ensures reliable operation in high outside air temperatures.

EFFICIENCYHigh Seasonal Energy Efficiency

Supports Abu Dhabi Quality & Conformity Council (QCC) requirements, with a greatly improved EER (MEPS) value.

CONCEALEDDucted, Out of Sight

The indoor unit sits hidden in the ceiling and feeds conditioned air through ducts — ideal for villas, halls, showrooms and offices.

55 °CMaximum Cooling Ambient
15.05SEER — SASO 2663:2021
2,001 CFMIndoor Airflow (High)
57,000BTU/h Cooling (T1)

FUNCTIONS

Blue FinFilterWeekly TimerProgram TimerAuto OffDistributingAuto RestartAdjustAuto ChangeoverReturnSet Temp.Economy

SPECIFICATIONS

Specification ARSG60CMTAZ (Cool Only)
Cooling — T1 condition / T3 condition
Cooling Capacity 57,000 / 51,000 Btu/h — 16.70 / 14.95 kW
Input Power 4.72 / 5.68 kW
Running Current 7.5 / 8.9 A
Power Factor 91.2 / 92.5 %
EER 12.10 / 9.00 Btu/h·W — 3.54 / 2.63 kW/kW
Sound Level, Indoor (High / Quiet) 41 / 38 dB(A)
General
SEER 15.05 Btu/W·h
Moisture Removal 6.5 pints/h — 3.7 L/h
Airflow Rate, Indoor (High) 2,001 CFM — 3,400 m³/h
Power Source 400 V / 3Ø / 60 Hz
Refrigerant R32
Indoor Unit — H×W×D / Weight 360 × 1,400 × 850 mm — 67 kg
Outdoor Unit — H×W×D / Weight 1,418 × 970 × 370 mm — 97 kg

Specifications based on SASO 2681 test conditions — T1: indoor 27°CDB / 19°CWB, outdoor 35°CDB / 24°CWB; T3: indoor 29°CDB / 19°CWB, outdoor 46°CDB / 24°CWB. SEER per SASO 2663:2021. Requires a 3-phase power supply.
